GAMMA

Continuous Motion Multi-Lane Four-Sided Seal Pouch/Sachet Packaging Machine

Up to 5,000 Sachets per Minute of Dry or Liquid Product

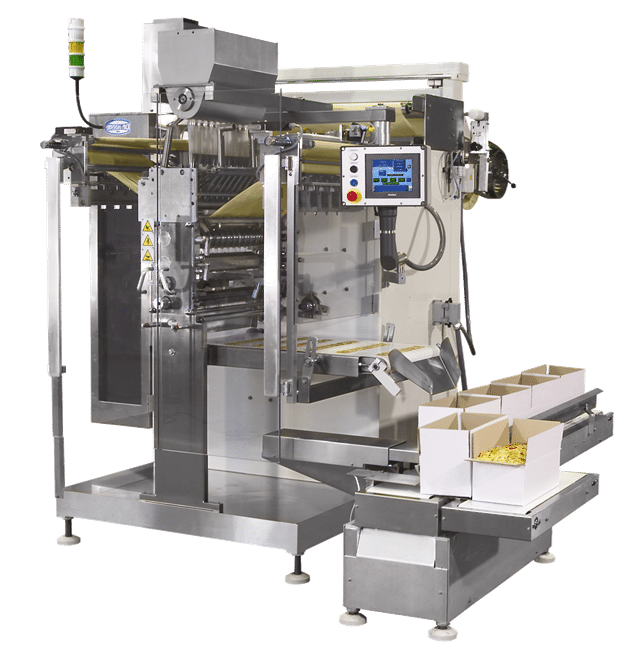

The GAMMA is a vertical continuous-motion machine operating with rotary sealing rollers to produce rectangular four-sided seal or shaped sachets. It has the flexibility to be integrated with any feed system and can accommodate a large range of sachet sizes. Its oscillating cup doser is the signature dosing system, very quick and extremely precise, specifically designed for free-flowing powders or granules (sugar, salt, sweetener, pepper, creamer, ground coffee, instant coffee, black tea, instant tea, pharmaceutical granules, etc.). The GAMMA Series offers different models and optional features.

Our Packaging Equipment Technical Support Team will install and test the GAMMA and properly train the operators and personnel to ensure the equipment performance.

Packaging Applications:

  • Coffee
  • Food & Beverage
  • Powder & Granular Products

Features:

  • Servo Controls
  • Four-Sided Seal Pouch Machine
  • 300 Cycles per Minute
  • Allen-Bradley PLC Controls
  • Touchscreen Interface
  • Number of Lanes from 2 to 24
  • Meets CE Regulations (Pump Doser Can Be 3A Certified)
  • Maximum Web Width of 1200mm

Filling Systems:

  • Auger Fillers
  • Basculating Cup Doser
  • Piston Pump
  • Gravimetric
  • Scales
  • Bowl Feeders
  • Counting Systems
  • Tablet Doser

Package Finishing:

  • Four-Sided Seal

Options:

  • Tear Notch
  • Stainless Steel Frame
  • Thermal Imprinters
  • Fully Automatic Collation and Cartoning Systems
  • Pouch in Pouch or Filter Paper
  • Motorized Film Roll Lift Device

Production Speed:

  • Up to 5,000 Sachets/Min (depending on the type of product, characteristics of the wrapping material and number of lanes)

Package Size Width:

  • 25 to 200 mm

Package Size Length:

  • 30 to 400mm

Capacity:

  • 0.1 to 300cc
