G16

Value-Engineered Simple and Quick Changeover

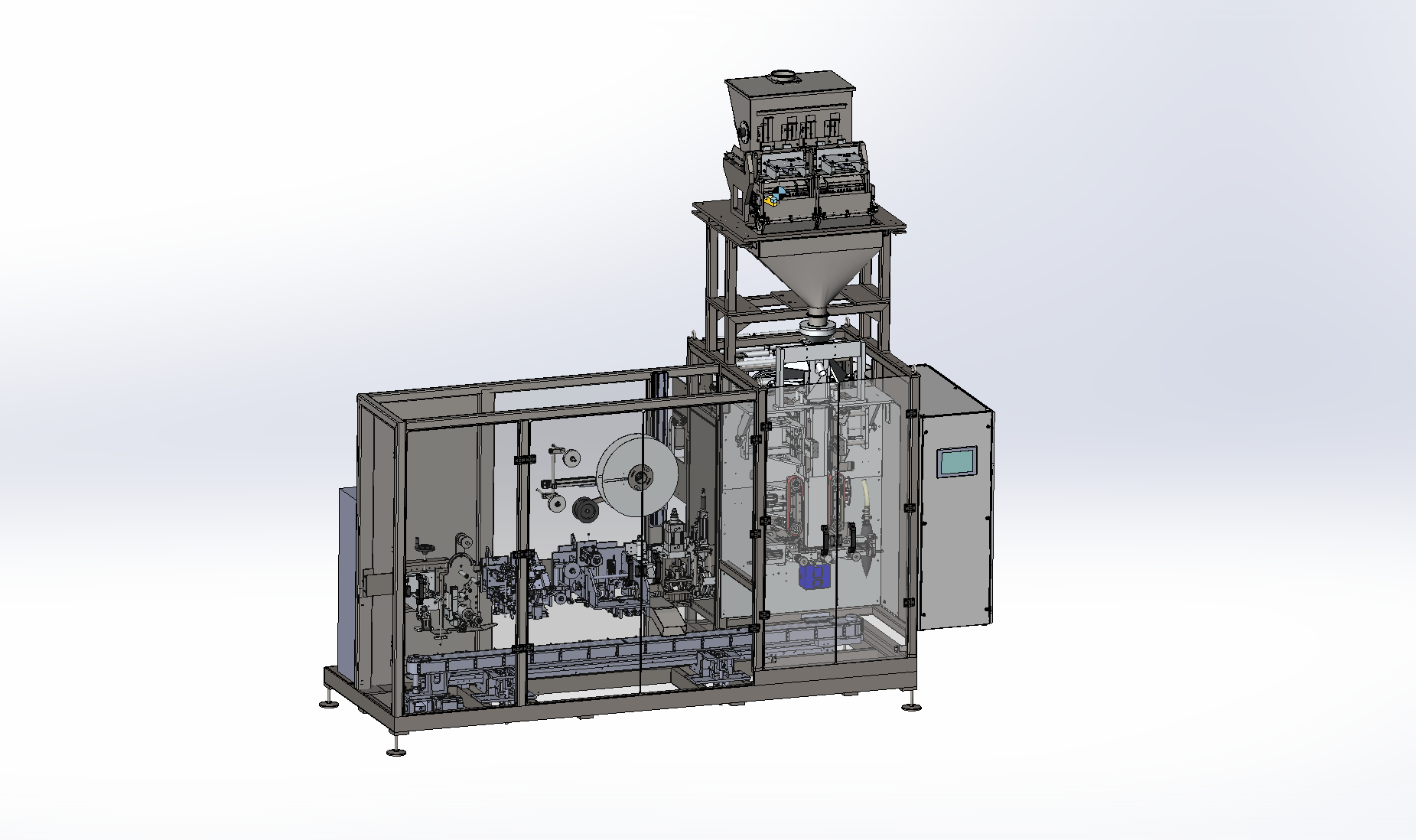

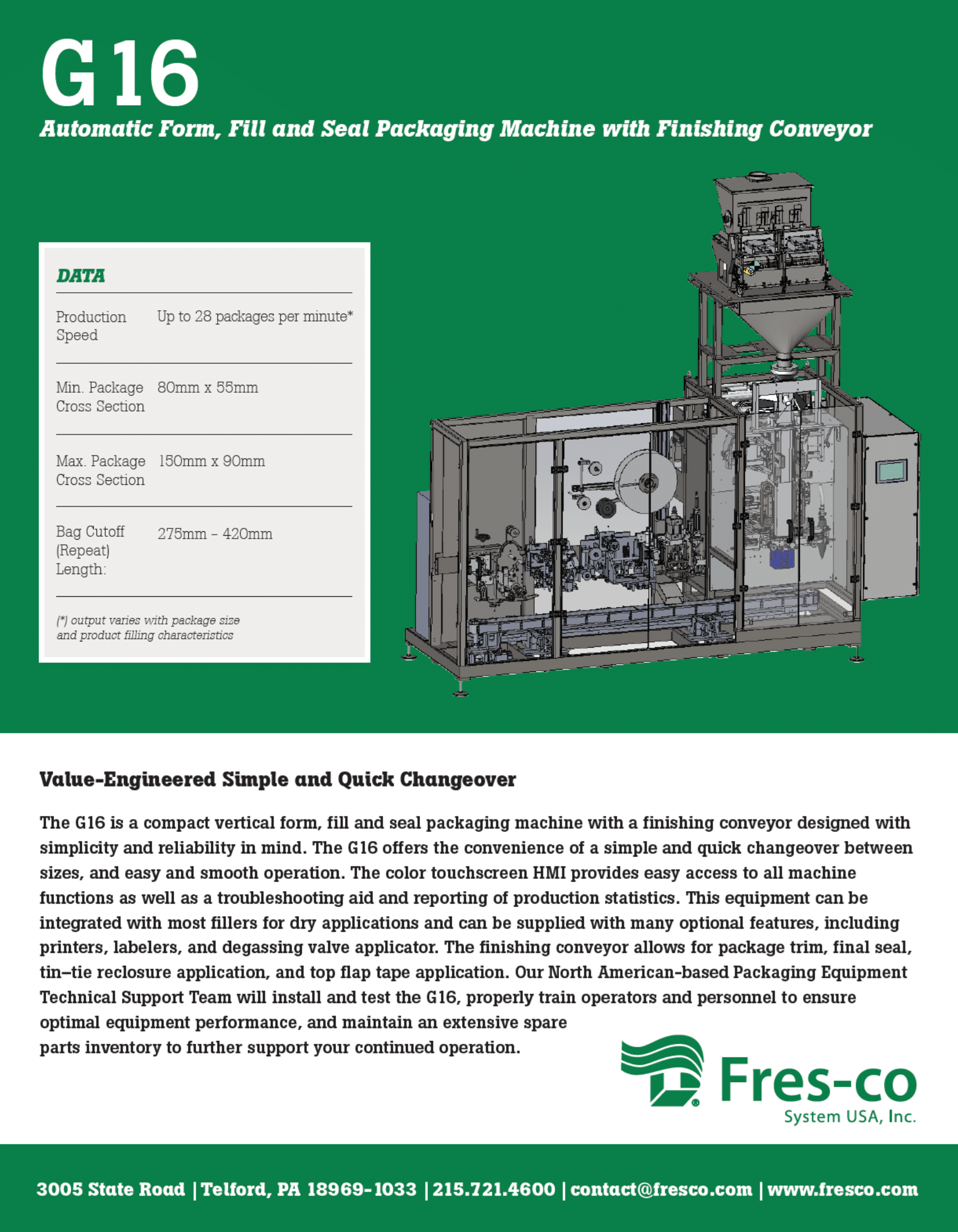

The G16 is a compact vertical form, fill and seal packaging machine with a finishing conveyor designed with simplicity and reliability in mind. The G16 offers the convenience of a simple and quick changeover between sizes, and easy and smooth operation. The color touchscreen HMI provides easy access to all machine functions as well as a troubleshooting aid and reporting of production statistics. This equipment can be integrated with most fillers for dry applications and can be supplied with many optional features, including printers, labelers, and degassing valve applicator. The finishing conveyor allows for package trim, final seal, tin–tie reclosure application, and top flap tape application. Our North American-based Packaging Equipment Technical Support Team will install and test the G16, properly train operators and personnel to ensure optimal equipment performance, and maintain an extensive spare parts inventory to further support your continued operation.

Packaging Applications:

• Coffee
• Food & Beverage
• Pet Food
• Powder & Granular Products

Features:

• Capable of Running Wide Variety of Materials
  (including Mono-Material Structures)
• VFFS Machine with Indexing Finishing Conveyor
• Servo Motion Controlled Seal Jaws and Web Pull
• Integrated Gas Flushing System
• Web Alignment (without Valves)
• Bag Top Trim
• Centerlining Program
• Film Reel Shaft
• Machine Exit Conveyor

Control System:

• PLC-Based TouchScreen HMI Controls

Sub-Model Configurations:

• G16/S – Shortened Finishing Conveyor Configuration

Filling Systems:

• Auger Filling Systems
• Scale Filling Systems
• Integration with Other Systems Available

Network Offering:

• Machine Control Communication via Ethernet IP

Package Finishing:

• Square Bottom, Gusseted Bags or Pillow Pouches
• Vertical Back Seal or CORNERSEAL^®
• BLOCKBAG™

Options:

• Fres-co Degassing Valve Applicator
• Fres-co Tin-Tie Applier
• Tape Down Applier (G16L only)
• VPN Modem for Remote Access
• Other Optional Features Available

Optional Integration:

• Thermal Transfer Printer
• Laser Coder
• Label Applier
• Package Checkweigher with Feedback

Output (output varies with package size and product filling characteristics):

• Up to 28 packages per minute

Package Dimension Min:

• 80 x 55 mm

Package Dimension Max:

• 150 x 90 mm

Bag Cutoff:

• 275 – 420 mm

Want to know more about our G16?

Use this form to contact Fres-co today!
