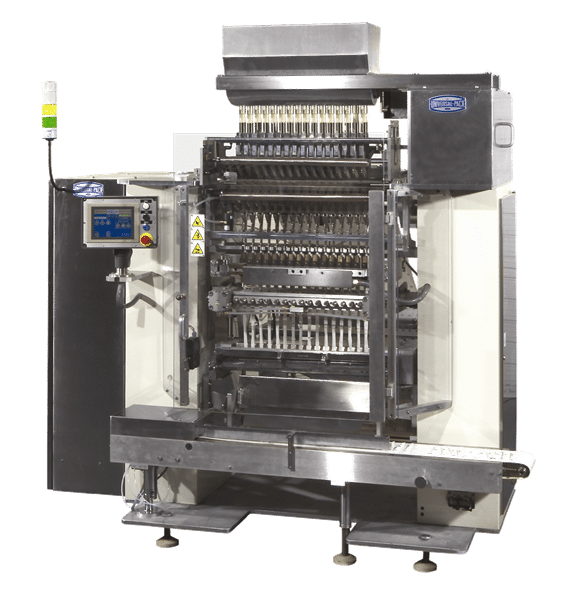

ALFA

High-Speed Multi-Lane Stick Packaging

A Cost-Effective Single-Serve Packaging System

The ALFA SERIES stick pack is a vertical intermittent motion machine specifically designed for free-flowing liquid, powders or granulates (sugar, salt, pepper, sweetener, black tea, creamer, ground coffee, instant coffee, instant tea, pharmaceutical granules, etc.). The ALFA can have up to 24 lanes. The production output depends on the number of lanes, product, film, dose stick format, dimension and other factors. A downstream collation and automatic cartoning can be added as optional features.

Our Packaging Equipment Technical Support Team will install and test the ALFA and properly train the operators and personnel to ensure the equipment performance.

Packaging Applications:

  • Food & Beverage
  • Powder & Granular Products

Features:

  • Form, Fill and Seal Stick Pack Packaging
  • From 2 to 24 Pack Lanes
  • Up to 1200mm Web Width
  • Proprietary Film Insertion/Folding System
  • Servo-Motion Controlled
  • PLC-based Touch Screen Controls
  • Meets CE Regulations (Pump Doser Can Be 3A Certified)
  • Other Optional Features Available

Filling Systems:

  • Multiple Filling Options
    • Basculating Cup Doser (Free Flowing Granular and Powder)
    • Auger Filler (Free Flowing and Non-Free Flowing Powder)
    • Piston Filler (Thin or Viscous Liquids)
    • Timed Flow Filler (Thin Liquids)
    • Aligner Dispenser (Tablets and Similar Products)
    • Scales (Snack Foods and Candies)

Package Finishing:

  • Fin Seal or Three-Side Seal

Options:

  • Product Feed Systems
  • SST Frame
  • Printing for Product Coding
  • Gas Flush
  • Check Weigher
  • Tear Notch
  • Collating, Stacking and Cartoning

Production Speed:

  • Up to 2,400ppm

Package Size Width:

  • 15 to 40 mm

Package Size Length:

  • 75 to 160mm

Capacity:

  • 0.1 to 200cc

A System Approach to Flexible Packaging

Your customized flexible packaging system with our ALFA might include:
