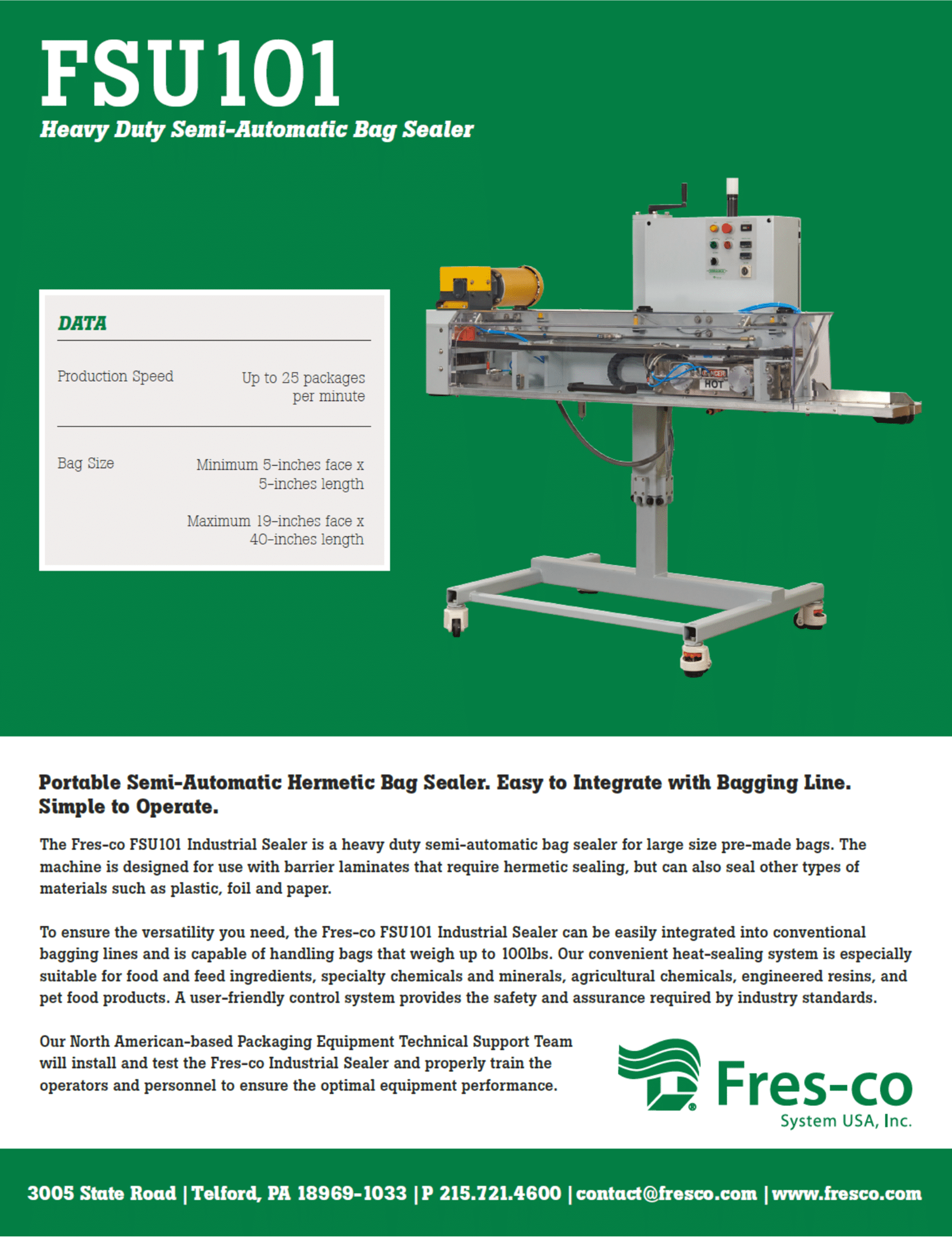

FSU101

Heavy Duty Semi-Automatic Bag Sealer

Portable Semi-Automatic Hermetic Bag Sealer. Easy to Integrate with Bagging Line. Simple to Operate.

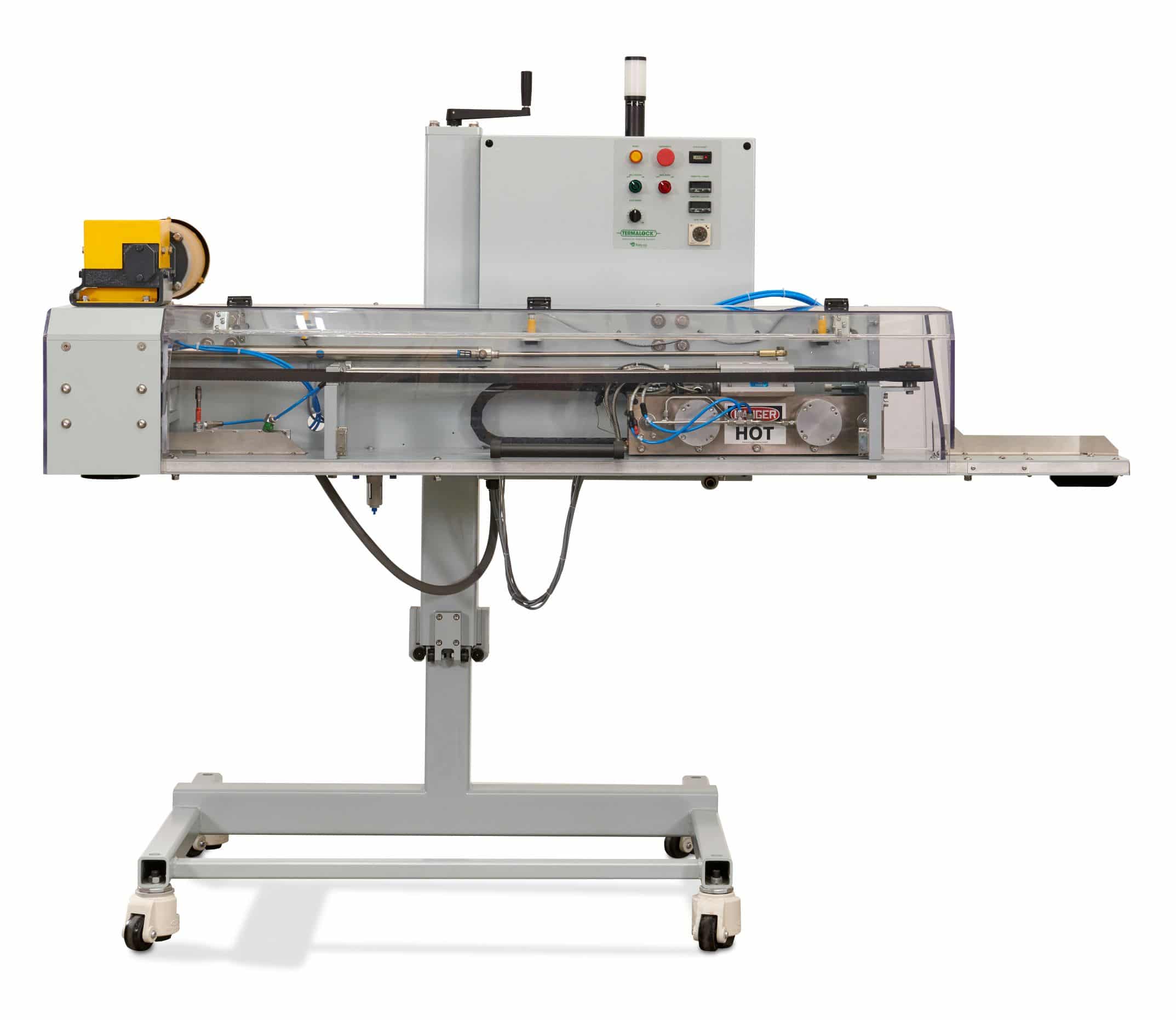

The Fres-co FSU101 Industrial Sealer is a heavy duty semi-automatic bag sealer for large size pre-made bags. The machine is designed for use with barrier laminates that require hermetic sealing. It also has the ability to seal other types of materials such as plastic, foil and paper.

To ensure the versatility you need, the Fres-co Industrial Sealer can be easily integrated into conventional bagging lines and is capable of handling bags that weigh up to 100lbs. This convenient heat sealing system works great for bags containing food and feed ingredients, agricultural chemical products, engineered resins, pet food, specialty minerals and other chemicals. A user-friendly control system provides the safety and assurance required by industry standards.

Our Packaging Equipment Technical Support Team will install and test the Fres-co Industrial Sealer and properly train the operators and personnel to ensure the equipment performance.







Packaging Applications:

  • Food & Feed Ingredients
  • Pet Food
  • Specialty Chemicals & Minerals

Features:

  • Capable of Sealing Up to 25 Bags per Minute (output varies depending on size, weight and type of high barrier material – see optional features)
  • Resistance-Type Heat Seal Bars with Dual Temperature Controls
  • Can Seal Gusseted Bags, Pillow Packs, Pouches and Stand-Up Pouches
  • Vortex-Air Cooling Station After Seal is Complete
  • Adjustable Seal Pressure and Dwell Time
  • MicroLogix™ PLC Controls
  • Integrates with Other Systems
  • Left or Right Hand Orientation

Package Finishing:

  • Hermetic Thermal Sealing Suitable for:
    • Pre-Made Bags
    • Gusseted Bags
    • Stand-Up Pouches
    • Pillow Packs
    • Pouches

Options:

  • Bag Top Trimmer
  • Conversion Kit Allows to Run Both Polyethylene and Polyester Outer Layer Bags
  • Auxiliary Bottom Conveyor
  • Various Filling Systems
  • Washdown Capability
  • Certification for Use in Class II or ATEX Zone 2 Hazardous or Potentially Hazardous Combustible Dust Environments

Production Speed:

  • Up to 25ppm

Bag Size:

  • Min. 5 inch x 5 inch
  • Max. 19 inch x 40 inch

Capacity:

  • Up to 100lbs
