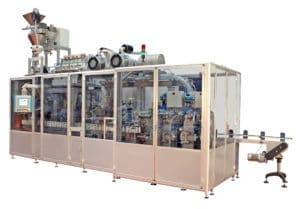

G500/G300

High-Speed Vertical Form, Fill and Seal Machine with Automatic Vacuum Packaging

Suitable for Volumes from 200 to 2,200cc

The G500 and G300 are fully automated vacuum packaging systems with partial or total back gas flush with oxygen residue of less than 1.5%. The G500 and G300 form, fill and seal a broad range of packaging types: gusseted bags with square bottom, straight or folded upper bag flap with adhesive tape. The system also allows degassing valve application during the packaging process. Different filling systems are offered to meet the operation needs of the type of product to be packed.

The G500 and G300 are great options for packaging coffee beans, ground coffee, rice and other products. Your choice of model depends on your business needs. Many optional features are also offered to better suit your packaging needs.

Our Packaging Equipment Technical Support Team will install and test the G500/G300 and properly train the operators and personnel to ensure the equipment performance.

Packaging Applications:

  • Coffee
  • Food & Beverage
  • Powder & Granular Products

Features:

  • Automatic Web Aligner
  • Motorized Horizontal Sealing
  • Expandable Roll Shaft Flanges
  • HMI (Human Machine Interface)
  • Splice Detector and Reject
  • Other Optional Features Available

Filling Systems:

  • Auger Filler
  • Electronic Scales with Load Cells
  • Multi-Head Scales

Package Finishing:

  • Corner Seal®
  • Gusseted Bags with Square Bottom
  • Straight or Folded Upper Flap

Options:

  • Check Weigher
  • Printing for Product Coding
  • Bag Edge Creasing Device
  • Tape Applicator
  • Back Fin Seal
  • Degassing Valve Applier
  • Inert Gas Compensation

Output:

  • G500: 50ppm
  • G300: 30ppm

Package Dimension Minimum:

  • G500: 60 x 40 x 190mm
  • G300: 60 x 40 x 190mm

Package Dimension Maximum:

  • G500: 130 x 70 x 410mm
  • G300: 115 x 85 x 410mm

Capacity:

  • G500: 200 milliliters to 2.2 liters
  • G300: 200 milliliters to 2.2 liters

A System Approach to Flexible Packaging

Your customized flexible packaging system with our G500/G300 might include:
