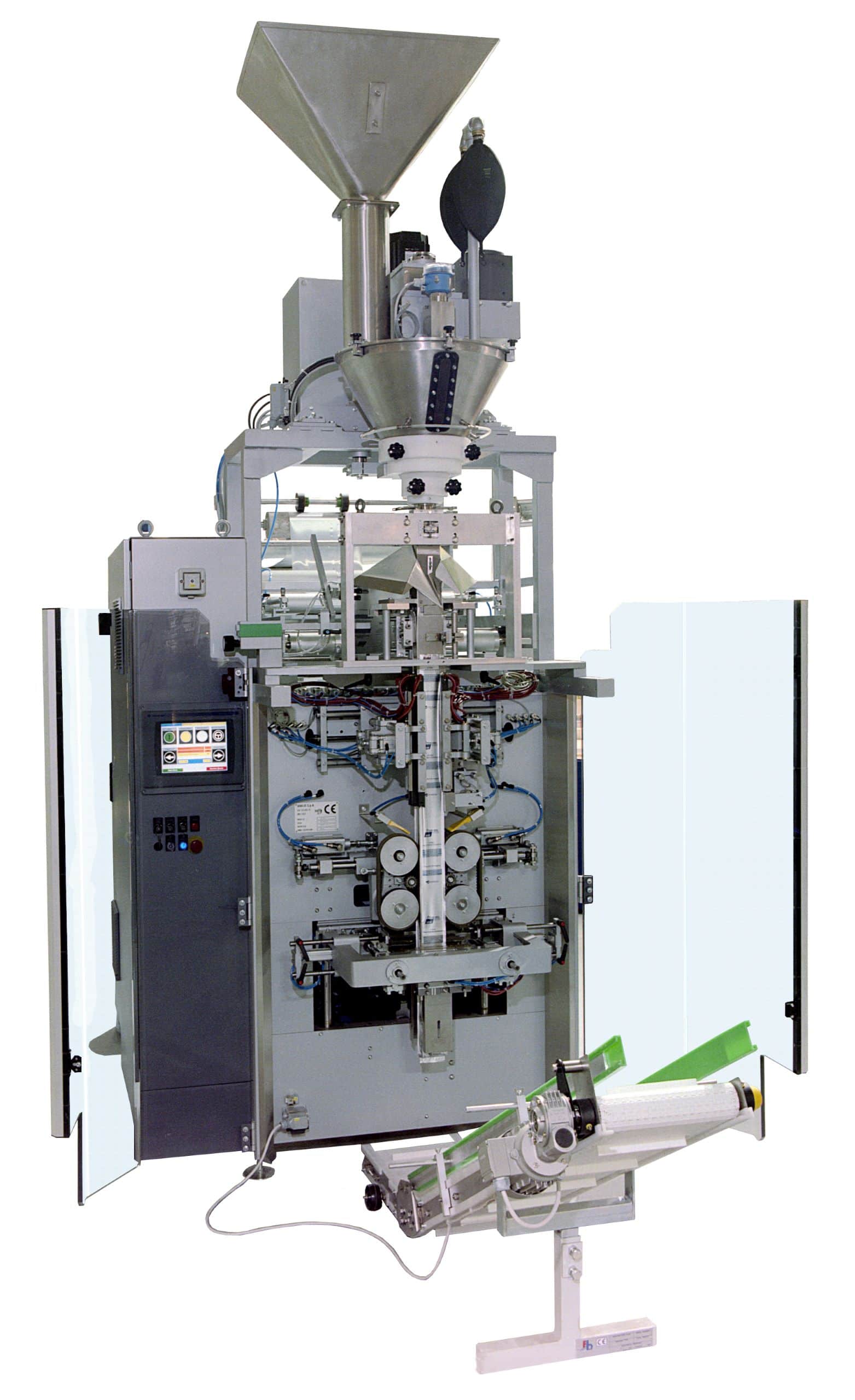

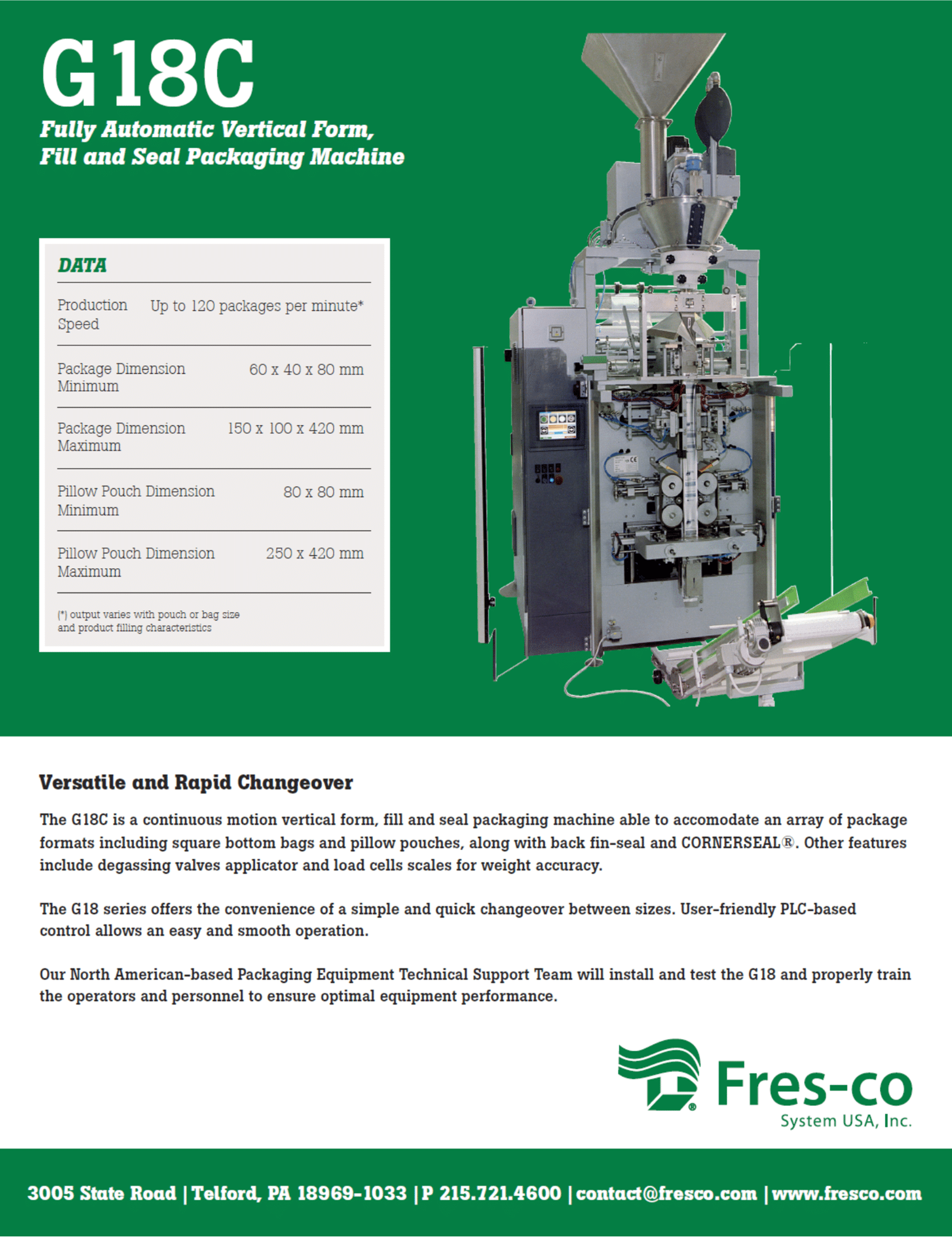

G18C

Fully Automatic Vertical Form, Fill and Seal Packaging Machine

Versatile and Rapid Changeover

The G18 is a vertical form, fill and seal packaging machine able to accommodate an array of package formats including square bottom, side gusseted bags and pillow pouches. Other features include degassing valves applicator and load cells scales for weight accuracy.

The equipment is available in three different models: G18 , G18C and G18C2. The G18 series offers the convenience of a simple and quick change over between sizes. User-friendly PLC-based control allows an easy and smooth operation.

Our Packaging Equipment Technical Support Team will install and test the G18C and properly train the operators and personnel to ensure the equipment performance.

Packaging Applications:

  • Coffee
  • Food & Beverage
  • Pet Food
  • Powder & Granular Products

Features:

  • VFFS
  • Continuous Motion
  • Automatic Web Alignment
  • Automatic Roll Lifting Position
  • Integrated Gas Flushing System
  • Head Space Deflation System
  • Allen-Bradley Panelview HMI
  • Shaftless Unwinder
  • Vacuum Pull Belts

Filling Systems:

  • Electronic Scales
  • Auger Filler
  • Combination Scales
  • Cup Dosing

Package Finishing:

  • Flat Bottom Side Gusseted
  • Pillow Pouches
  • Corner Seal® Packages
  • Die Cut Top Flap
  • Retail Through Industrial Sizes

Options:

  • Fres-co Degassing Valve Applicator
  • Thermal Imprinters
  • Label Appliers
  • Integrated Auxiliary Exit Conveyor
  • Zipper Reclosure Applier
  • Windows-Based HMI Interface

Output:

  • 120 ppm

Package Dimension Min:

  • 80 x 32 mm

Package Dimension Max:

  • 170 x 130 mm

Capacity:

  • 1.5oz to 5lbs

A System Approach to Flexible Packaging

Your customized flexible packaging system with our G18C might include:

Machines

Machines

Example

G18C

Materials

Materials

Service

Service
