G14CX

High Speed, Automatic Form, Fill and Seal Packaging Machine with Finishing Conveyor

High Speed and Flexible Changeover

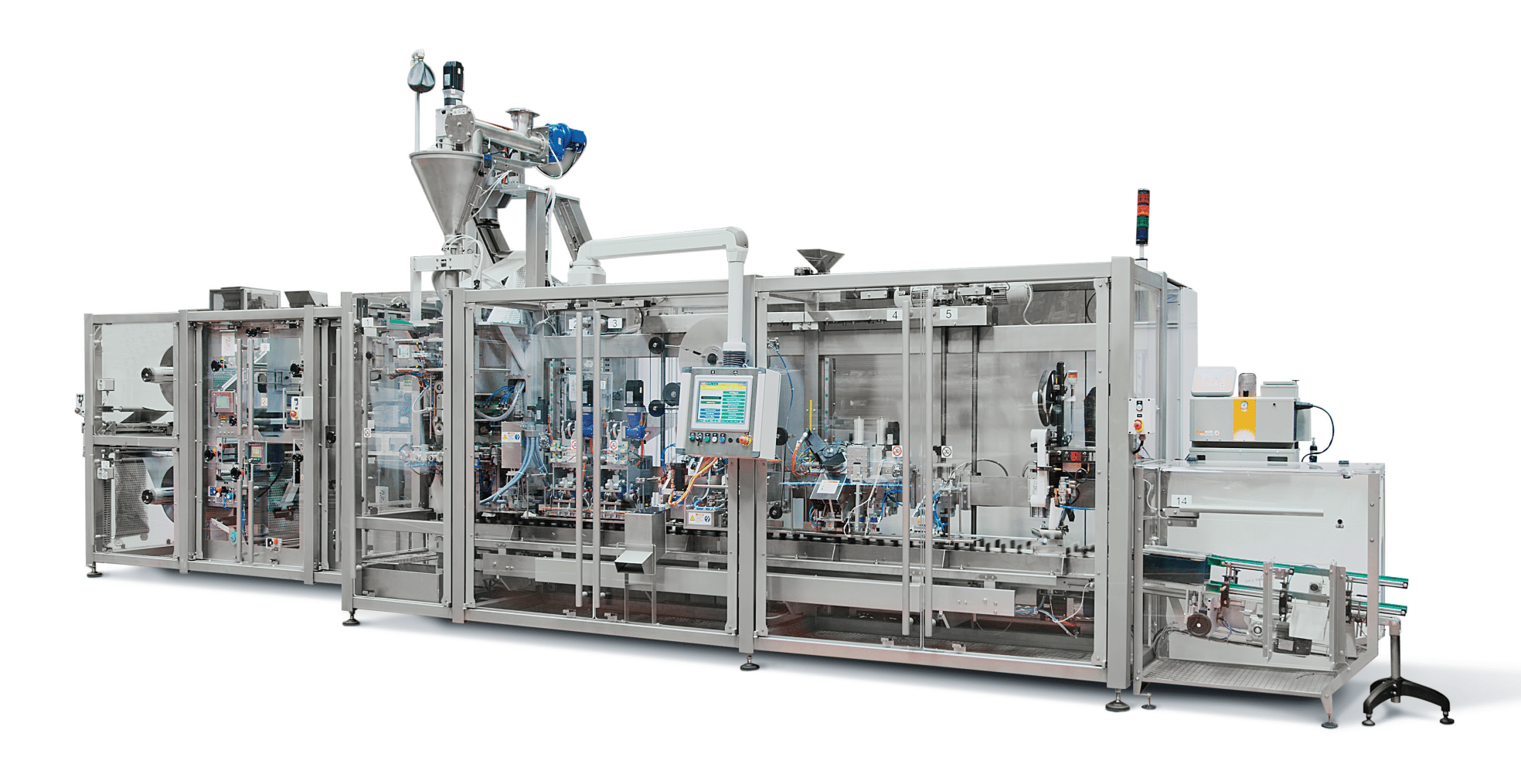

The G14CX is our next generation of continuous motion, vertical form, fill and seal packaging machine designed with concepts of unique flexibility and maximum performance in mind. The G14CX is designed for maximum output yet also offers the convenience of a simple and quick changeover between sizes, and easy and smooth operation because of the PLC-based controls.

The G14CX is available in our traditional ‘L’ layout or with an in-line design, whichever fits the customer plant site better. The modular pre-forming section allows for multiple web features such as printers, labelers, laser, degassing valve applier, zipper applier, automatic web splicing and CORNERSEAL®.

The touchscreen HMI provides easy access to all machine functions as well as a troubleshooting aid and reporting of production statistics.

The finishing conveyor is extended to allow for package trim, top re-sealing, tin-tie reclosure application, top flap tape or label application as well as other features.

Our Packaging Equipment Technical Support Team will install and test the G14CX and properly train operators and personnel to ensure the equipment performance.

Packaging Applications:

  • Coffee
  • Food & Beverage
  • Pet Food
  • Powder & Granular Products

Features:

  • Continuous Motion, VFFS Machine with Indexing Finishing Conveyor
  • Servo Motion Controlled Seal Jaws and Web Pull
  • Integrated Gas Flushing System
  • Automatic Web Alignment
  • Vibration for Product Settling
  • Bag Top Trim
  • Centerlining Program
  • Integrated Discharge Conveyor
  • Automatic Web Splicing

Control System:

  • PLC-Based Touch Screen HMI Controls

Network Offering (control system and network offering vary depending on model):

  • Allen-Bradley ControlNet
  • Ethernet
  • SERCOSInterface

Filling Systems:

  • Fits Most Fillers for Different Applications
    • Auger Fillers
    • Cup Fillers
    • Linear Scales
    • Combination Weighers

Package Finishing:

  • Square Bottom
  • Gusseted Bags
  • BLOCKBAG®
  • CORNERSEAL®

Options:

  • Degassing Valve Applier
  • Fres-co Tin-Tie Applier
  • Tape Down Applier
  • Label Appliers
  • Thermal Transfer Printers
  • Laser Coder
  • VPN Modem for Remote PLC Access
  • Package Check Weigher with Automatic Feedback
  • PC based HMI for Additional Data Collection and Trouble-shooting Features
  • Other Optional Features Available

Output (output varies with pouch size and product filling characteristics):

  • Up to 85 cycles per minute

Package Dimension Min:

  • 60 x 40 x 180 mm

Package Dimension Max:

  • 130 x 80 x 420 mm

A System Approach to Flexible Packaging

Your customized flexible packaging system with our G14C might include:

Machines

Machines

Example

G14CX

Materials

Materials

Service

Service
